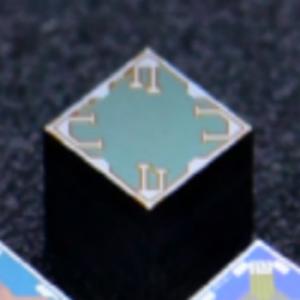

highly stable monocrystalline silicon pressure/differential pressure sensor chips

Name: highly stable monocrystalline silicon pressuredifferential pressure sensor chips
Brand: BEWIS
Price: 143 USD

Brand Name : BEWIS

Model Number : BW-MD3

Place of Origin : China

MOQ : 1

Price : $143

Payment Terms : T/T

Range : 40kPa

Overvoltage (back) : 5MPa

Overvoltage (positive) : 6MPa

recommended voltage : 4.5~5.5V

Bias : ＜ 0.050 %FS

Contact Now

Bewis BW-MD series of highly stable monocrystalline silicon sensor chip, which has a number of excellence performance, and has been batch cast to the international market. It has been widely used in petrochemical, metallurgical power, industrial automation, aerospace, Internet of things and other fields in Europe, Asia.

Characteristics(Measured at I=0.3mA, T=23°C)

Parameters		min	typ	max	Unit
Bridge Resistance		9.5	10	10.5	kΩ
Offset Voltage		-3	0	+3	mV/V
Supply Voltage		-	3	10	V
Supply Current		-	0.3	1	mA
Temperature Coefficient of Bridge Resistance		+0.05	+0.08	+0.12	%FS/K
Temperature Coefficient of Zero Point		-0.05	±0.03	+0.05	%FS/K
Temperature Coefficient of Full Scale		-0.05	-0.08	-0.15	%FS/K
Temperature Bias (42h, 30℃ to 135℃ to 30℃)		0.02	1	2	uV/V
Static Pressure Characteristics		-	0.03	-	±%FS/10MPa
Long-term Stability (1000h, 135℃		-	≤ 3	±5	uV/V
Nonlinearity		-	≤ 0.3	-	±%FS
Sensitivity	MD1-MD2	6	8	10	mV/V
Sensitivity	MD3-MD8	15	20	25	mV/V

Stability( Heating from 23℃ to 85℃ for 30 hours,returning to 23℃. Measuring zero drift over 42 hours)

highly stable monocrystalline silicon pressure/differential pressure sensor chips
